DJI MATRICE 4 Series
The Age of Intelligent Flight
Perkenalkan DJI Matrice 4 Series, seri drone flagship multi-sensor yang ringkas dan cerdas untuk kebutuhan industri enterprise. Seri ini mencakup Matrice 4T dan Matrice 4E, masing-masing dilengkapi fitur deteksi pintar dan pengukuran dengan laser range finder. Operasi penerbangan menjadi lebih aman dan andal berkat peningkatan signifikan pada sistem sensor. Aksesori untuk seri Matrice 4 juga telah ditingkatkan.Matrice 4T dirancang untuk berbagai sektor seperti kelistrikan, tanggap darurat, keselamatan publik, dan kehutanan. Matrice 4E ditujukan untuk aplikasi geospasial seperti survei dan pemetaan, konstruksi, serta pertambangan. Seri ini menghadirkan peningkatan dalam operasi udara berbasis sistem cerdas.
DJI MATRICE 4T
Wide-Angle Camera
1/1.3″ CMOS, 48MP Effective Pixels, f/1.7, Format Equivalent: 24 mm
Medium Tele Camera
1/1.3″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 70 mm
Tele Camera
1/1.5″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 168 mm
Laser Range Finder
Measurement Range: 1800 m (1 Hz); Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz) Blind Zone: 1 m; Range Accuracy (m): ± (0.2 + 0.0015 × D)
Infrared Thermal Camera
Resolution 640 × 512, f/1.0, Equivalent Focal Length: 53 mm, Uncooled VOx Microbolometer, Supports High-Res Mode
NIR Auxiliary Light
FOV: 6°, Illumination Distance: 100 m
DJI MATRICE 4E
Wide-Angle Camera
4/3 CMOS, 20MP Effective Pixels , f/2.8-f/11, Format Equivalent: 24 mm, Mechanical Shutter
Medium Tele Camera
1/1.3″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 70 mm
Tele Camera
1/1.5″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 168 mm
Laser Range Finder
Measurement Range: 1800 m (1 Hz); Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz) Blind Zone: 1 m; Range Accuracy (m): ± (0.2 + 0.0015 × D)

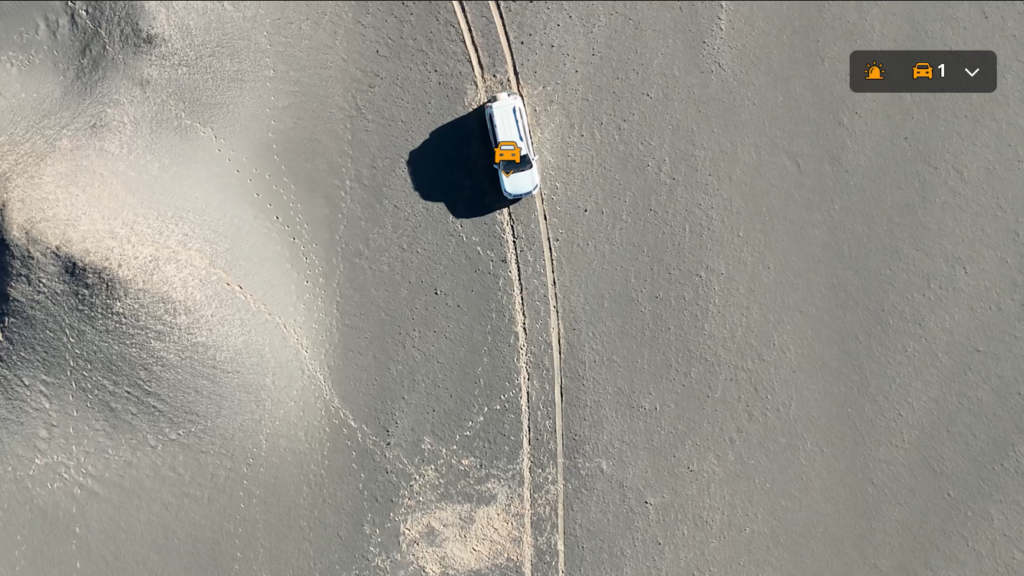

Sistem Operasi Cerdas
Model bawaan mampu mendeteksi kendaraan, kapal, dan individu dalam operasi pencarian dan penyelamatan maupun penerbangan rutin. Sistem ini juga mendukung pergantian ke model lain untuk memperluas skenario aplikasi. Selain itu, tersedia dukungan foto grid resolusi tinggi serta kemampuan pelacakan yang andal.

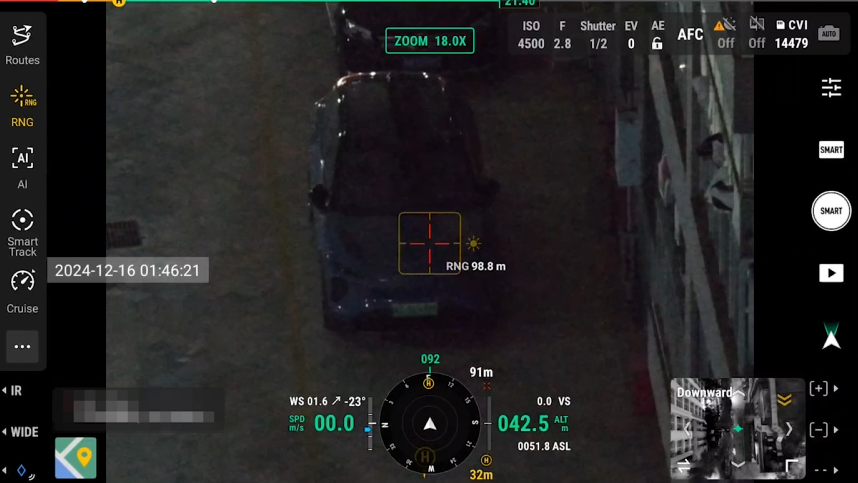

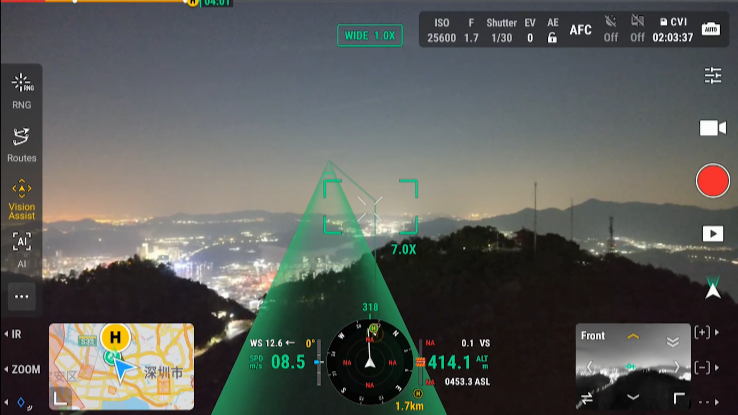

Kinerja Stabil dalam Kondisi Minim Cahaya
DJI Matrice 4 Series meningkatkan performa operasi minim cahaya melalui Night Scene Mode, kamera aperture besar, lampu bantu NIR hingga 100 meter, serta thermal imaging resolusi tinggi dengan pengukuran suhu real-time. Enam sensor fisheye low-light mendukung positioning visual dan penghindaran rintangan otomatis di lingkungan gelap.

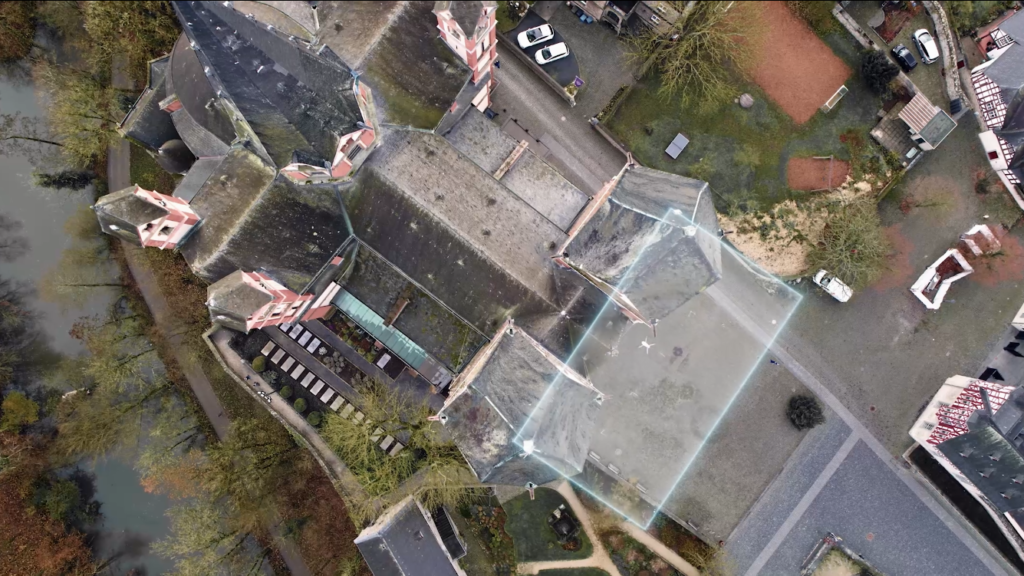

Pemetaan Akurat, Cepat dan Efisien
Matrice 4 Series mendukung pemotretan interval 0,5 detik pada mode ortofoto dan oblique dengan kecepatan pemetaan hingga 21 m/s untuk meningkatkan efisiensi survei udara. Fitur Smart 3D Capture dan Smart 3D Explore memungkinkan pembuatan model 3D secara langsung di remote controller, perencanaan rute otomatis yang aman, serta pemodelan presisi untuk kebutuhan fotogrametri jarak dekat.
Sisten Penerbangan Aman dan Stabil
Matrice 4 Series dilengkapi modul DJI RTK terintegrasi dengan dukungan L5 dan GNSS+Vision Fusion untuk positioning presisi serta return-to-home yang tetap berfungsi meski tanpa sinyal GNSS. Sistem ini mendukung perencanaan jalur otomatis berbasis peta elevasi, vision assist 5 arah, dan transmisi O4 Enterprise hingga 25 km dengan bandwidth unduh 20 MB/s. Opsi DJI Cellular Dongle 2 dengan dukungan 4G turut meningkatkan stabilitas sinyal di lingkungan kompleks.
SPESIFIKASI
Takeoff Weight (with propellers)
1219 g
Takeoff Weight (with Low-Noise propellers)
1229 g
Max Takeoff Weight
Standard Propellers: 1420 g
Low-Noise Propellers: 1430 g
Dimensions
Folded: 260.6×113.7×138.4 mm (L×W×H)
Unfolded: 307.0×387.5×149.5 mm (L×W×H)
Max Payload
200 g
Propeller Size
10.8 in
Diagonal Wheelbase
438.8 mm
Max Ascent Speed
10 m/s
Maximum Ascent Speed With Accessories
6 m/s
Max Descent Speed
8 m/s
Max Descent Speed With Accessories
6 m/s
Max Horizontal Speed (at sea level, no wind)
21 m/s
Max Altitude
6000 m
Max Operating Altitude with Payload
4000 m
Max Flight Time (without wind)
49 min (standard propellers)
46 min (low-noise propellers)
Max Hover Time (without wind)
42 min (standard propellers)
39 min (low-noise propellers)
Max Flight Distance (no wind)
35 km (standard propellers)
32 km (low-noise propellers)
Max Wind Speed Resistance
12 m/s
Max Pitch Angle
35°
Operating Temperature
-10℃ to 40℃ (14°F to 104°F)
GNSS
GPS + Galileo + BeiDou + GLONASS
Hovering Accuracy Range (windless or breezy)
±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)
RTK GNSS Accuracy
RTK Fix: 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)
Stabilization System
DJI Matrice 4T：3-axis (tilt, roll, pan)
DJI Matrice 4E：3-axis (tilt, roll, pan)
Mechanical Range
DJI Matrice 4T
Gimbal Mechanical Limits:
Tilt: -140° to 113°
Roll: -52° to 52°
Pan: -65° to 65°
Soft Limits:
Tilt: -90° to 35°
Roll: -47° to 47°
Pan: -60° to 60°
DJI Matrice 4E
Gimbal Mechanical Limits:
Tilt: -140° to 50°
Roll: -52° to 52°
Pan: -65° to 65°
Soft Limits:
Tilt: -90° to 35°
Roll: -47° to 47°
Pan: -60° to 60°
Controllable Rotation Range
DJI Matrice 4T
Tilt: -90° to 35°
Pan: Not controllable
DJI Matrice 4E
Tilt: -90° to 35°
Pan: Not controllable
Max Control Speed (tilt)
100°/s
Angular Vibration Range
±0.007°
Yaw Axis
Manual operation is uncontrollable
The MSDK interface program is controllable
Ingress Protection Rating
No Standard Protection Level
Operating Temperature
Standard: -10°C to 40°C (14°F to 104°F)
Image Sensor
DJI Matrice 4T
Wide:
1/1.3-inch CMOS, Effective Pixels: 48 MP
Medium Tele Camera:
1/1.3-inch CMOS, Effective Pixels: 48 MP
Telephoto:
1/1.5-inch CMOS, Effective Pixels: 48 MP
DJI Matrice 4E
Wide:
4/3-inch CMOS Effective Pixels: 20 MP
Medium Tele Camera:
1/1.3-inch CMOS, Effective Pixels: 48 MP
Telephoto:
1/1.5-inch CMOS, Effective Pixels: 48 MP
Lens
DJI Matrice 4T
FOV: 82°
Equivalent Focal Length: 24 mm
Aperture: f/1.7
Focus: 1 m to ∞
DJI Matrice 4E
FOV: 84°
Equivalent Focal Length: 24 mm
Aperture: f/2.8-f/11
Focus: 1 m to ∞
Medium Tele Camera
FOV: 35°
Equivalent Focal Length: 70 mm
Aperture: f/2.8
Focus: 3 m to ∞
Tele camera
FOV: 15°
Equivalent Focal Length: 168 mm
Aperture: f/2.8
Focus: 3 m to ∞
ISO Range
Normal Mode: ISO 100 to ISO 25600
Night Scene Mode:
Matrice 4T:
Wide Camera: ISO 100 to ISO 409600
Midum Tele Camera: ISO 100 to ISO 409600
Tele Camera: ISO 100 to ISO 819200
Matrice 4E:
Wide Camera: ISO 100 to ISO 204800
Midum Tele Camera: ISO 100 to ISO 409600
Tele Camera: ISO 100 to ISO 409600
Shutter Speed
DJI Matrice 4T
2-1/8000 s
DJI Matrice 4E
Wide:
Electronic Shutter: 2-1/8000 s
Mechanical Shutter: 2-1/2000 s
Medium Telephoto: 2-1/8000 s
Telephoto: 2-1/8000 s
Max Photo Size
DJI Matrice 4T
Wide: 8064 × 6048
Medium Telephoto: 8064 × 6048
Telephoto: 8192 × 6144
DJI Matrice 4E
Wide: 5280 × 3956
Medium Telephoto: 8064 × 6048
Telephoto: 8192 × 6144
Minimum Photo Interval
DJI Matrice 4T: 0.7 s
DJI Matrice 4E: 0.5 s
Still Photography Modes
DJI Matrice 4T:
Wide:
Single: 12 MP/48 MP
Interval: 12 MP/48 MP
JPEG：0.7/1/2/3/5/7/10/15/20/30/60 s
Smart Shooting:12MP
Panorama: 12 MP (raw image);100 MP (stitched image)
Medium Tele Camera:
Single: 12 MP and 48 MP
Interval: 12 MP/48 MP
JPEG：0.7/1/2/3/5/7/10/15/20/30/60 s
Smart Shooting: 12MP
Telephoto:
Single: 12 MP and 48 MP
Interval: 12 MP/48 MP
JPEG：0.7/1/2/3/5/7/10/15/20/30/60 s
Smart Shooting：12MP
DJI Matrice 4E:
Single: 20 MP
Interval: 20 MP
JPEG：0.5/0.7/1/2/3/5/7/10/15/20/30/60 s
JPEG + RAW：2/3/5/7/10/15/20/30/60 s
Smart Shooting: 20 MP
Panorama: 20 MP (raw image);100 MP (stitched image)
Medium Tele Camera:
Single: 12 MP and 48 MP
Interval: 12 MP/48 MP
JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s
Smart Shooting：12 MP
Telephoto:
Single: 12 MP and 48 MP
Interval: 12 MP/48 MP
JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s
Smart Shooting: 12 MP
Video Codec and Resolution
Video Coding Format: H.264/H.265
Coding Strategy: CBR, VBR
Resolution:
4K: 3840 × 2160@30fps
FHD: 1920 × 1080@30fps
Max Video Bitrate
H.264: 60Mbps
H.265: 40Mbps
Supported File System
exFAT
Photo Format
DJI Matrice 4T: JPEG
DJI Matrice 4E:
Wide: JPEG/DNG (RAW)
Medium Tele Camera: JPEG
Telephoto: JPEG
Video Format
MP4 (MPEG-4 AVC/H.264)
Digital Zoom
Telephoto:
16x (112x hybrid zoom)
Infrared Illumination
DJI Matrice 4T: FOV: 5.7°±0.3°
Frame Rate
30fps
Night Vision
Starlight Grade
Laser Rangefinding
Measurement Range: 1800 m (1 Hz) @20% reflectivity target*
Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz)
Blind Zone: 1 m
Distance Measurement Accuracy:
1-3 m: System Error <0.3 m, Random Error <0.1 meters @1σ
Other Distances: ±(0.2+0.0015D) (D represents the measurement distance in meters)
Thermal Imager
DJI Matrice 4T: uncooled vanadium oxide (VOx)
Resolution
DJI Matrice 4T: 640 × 512
Pixel Pitch
DJI Matrice 4T: 12 μm
Frame Rate
DJI Matrice 4T: 30 Hz
Lens
DJI Matrice 4T DFOV: 45°±0.3°
DJI Matrice 4T equivalent focal length: 53 mm
DJI Matrice 4T Aperture: f/1.0
DJI Matrice 4T Focus: 5 m to ∞
Sensitivity
DJI Matrice 4T: ≤50mk@F1.0
Temperature Measurement Method
DJI Matrice 4T: Spot Meter, Area Measurement
Temperature Measurement Range
DJI Matrice 4T:
High Gain Mode: -20℃ to 150℃ (-4°F to 302°F) ()
Low Gain Mode: 0℃ to 550℃ (32°F to 1022°F)
Pallete
DJI Matrice 4T:
White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
Photo Format
DJI Matrice 4T：JPEG (8bit)、 R-JPEG (16bit)
Video Resolution
DJI Matrice 4T:
1280 × 1024@30fps (Super Resolution enabled, Night Mode not activated)
Other conditions: 640 × 512@30fps
Video Bitrate
DJI Matrice 4T:
6.5Mbps (H.264 640 × 512@30fps)
5Mbps (H.265 640 × 512@30fps)
12Mbps (H.264 1280 × 1024@30fps)
8Mbps (H.265 1280 × 1024@30fps)
Video Format
DJI Matrice 4T：MP4
Still Photography Format
DJI Matrice 4T:
Single: 1280 × 1024/640 × 512
Interval: 1280 × 1024/640 × 512
JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
Photo Resolution
DJI Matrice 4T:
Infrared: 1280 × 1024 (Super Resolution on)
640 × 512 (Super Resolution off)
Digital Zoom
DJI Matrice 4T: 28x
Infrared Wavelength
DJI Matrice 4T: 8um to 14um
Infrared Temperature Measurement Accuracy
DJI Matrice 4T: High Gain: ±2℃ or ±2%, whichever is greater
DJI Matrice 4T: Low Gain: ±5℃ or ±3%, whichever is greater
Infrared Temperature Measurement Accuracy
Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft.
Forward
Binocular Measurement Range: 0.4-22.5 m
Measurement Range: 0.4-200 m
Obstacle Avoidance Speed: Flight Speed ≤21 m/s
FOV: 90° (horizontal), 135° (vertical)
Backward
Measurement Range: 0.4-22.5 m
Measurement Range: 0.4-200 m
Obstacle Avoidance Speed: Flight Speed ≤21 m/sField of View (FOV)-90° (horizontal), 135° (vertical)
Lateral
Measurement Range: 0.4-22.5 m
Measurement Range: 0.4-200 m
Obstacle Avoidance Speed: Flight Speed ≤21 m/sField of View (FOV)-90° (horizontal), 135° (vertical)
Downward
Measurement Range: 0.3-18.8 m
Obstacle Avoidance Speed: Flight Speed ≤10 m/s
The FOV to the front and rear is 160° and 160° to the right and left.
Operating Environment
Forward, Backward, Left, Right, and Upward:
Delicate texture on the surface, adequate light.
Downward:
The ground has rich textures and sufficient lighting conditions*, with a diffuse reflection surface and a reflectivity greater than 20% (such as walls, trees, people, etc.).
Video Transmission System
O4 Enterprise
Live View Quality
Remote Controller: 1080p/30fps
Operating Frequency
2.400-2.4835 GHz
2.400-2.4835 GHz
5.725-5.850 GHz
5.150-5.250 GHz (CE)
Transmitter Power (EIRP)
2.4 GHz: ≤33 dBm (FCC), ≤20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC), <30 dB (SRRC) , <14 dBm (CE)
5.15-5.25: < 23 dBm (FCC/CE)
Max Transmission Distance (unobstructed, free of interference)
25 km (FCC)
12 km (CE)
12 km (SRRC)
12 km (MIC)
Max Transmission Distance (with interference)
Strong Interference – City Centers (approx. 1.5-5 km)
Medium Interference – Suburban Areas (approx. 5-15 km)
Micro interference：Suburbs/Seasides (approx. 15-25 km)
Max Download Speed
20 MB/s
Latency (depending on environmental conditions and mobile device)
130 ms
Antenna
8 antennas, 2T4R
Supported SD Cards
U3/Class10/V30 or above is required, or use a memory card from the recommended list.
Recommended microSD Cards
Lexar 1066x 64GB U3 A2 V30 microSDXC
Lexar 1066x 128GB U3 A2 V30 microSDXC
Lexar 1066x 256GB U3 A2 V30 microSDXC
Lexar 1066x 512GB U3 A2 V30 microSDXC
Kingston Canvas GO! Plus 64GB U3 A2 V30 microSDXC
Kingston Canvas GO! Plus 128GB U3 A2 V30 microSDXC
Kingston Canvas GO! Plus 256GB U3 A2 V30 microSDXC
Kingston Canvas GO! Plus 512GB U3 A2 V30 microSDXC
Capacity
6741 mAh
Standard Voltage
14.76 V
Max Charging Voltage
17.0 V
Cell Type
Li-ion 4S
Weight
401 g
Recharging Temperature
5°C to 40°C (41°F to 104°F)
Discharge Rate
4C
Max Charging Power
1.8C
Cycle Count
200
